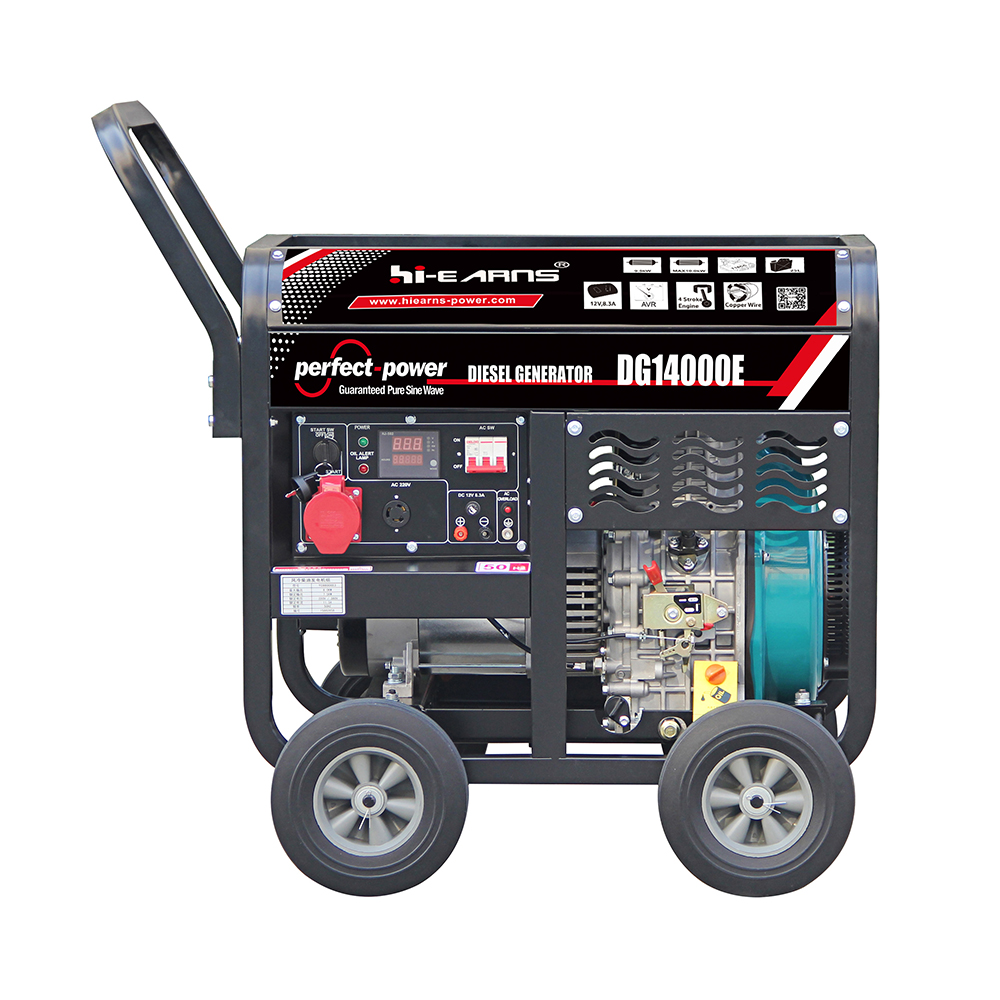

9千瓦開架柴油發電機組
9千瓦開架柴油發電機組
廠家直銷，品質保證
功率大，油耗低
廠家直銷，品質保證
功率大，油耗低
電話：18915028588
郵箱：server003@hiearns.com
- 電話：18915028588
- 郵箱：server003@hiearns.com
下載資料
| Model型號 | DG14000E | ||
| GENERATOR發電機 | Frequency頻率(HZ) | 50 | |
| Max.output最大輸出(KW) | 10 | ||
| Rated output額定輸出(KW) | 9.0 | ||
| Rated AC voltage額定電壓(V) | 220, 230, 220/380, 230/400 | ||
| Power factor功率因素 | 1 | ||
| DC output直流輸出(V) | 12V/8.3A | ||
| Phase相數 | Single phase or Three phase單相或者三相 | ||
| Alternator type電機形式 | Self-excited, 2-pole alternator自勵磁，兩級電機 | ||
| Starting system啟動系統 | Electric電啟動 | ||
| Noise level 7米處噪音(Dba/7m) | 80-85 | ||
| Fuel tank capacity燃油箱容量(L) | 25 | ||
| Continuous running time持續工作 時間 | 8.5 | ||
| ENGINE發動機 | Engine model型號 | HR1102F | |
| Engine type動力形式 | Single-cylinder, vertical, 4-stroke air-cooled diesel engine單缸，直立，四沖程，風冷柴油機 | ||
| Bore×Stroke缸徑×行程 | 102×88 | ||
| Fuel consumption rate油耗(g/kw.h) | ≤230 | ||
| Fuel燃油 | 0# or -10#light diesel oil 0#或-10#清潔柴油 | ||
| Lubrication oil volume潤滑油容量(L) | 1.65 | ||
| Combustion system燃燒系統 | Direct Injection直噴式 | ||
| STANDARD FEATURES標準配置 | Voltmeter電壓表 | YES是 | |
| AC output socket交流插頭 | 2 | ||
| AC circuit breaker交流開關 | YES是 | ||
| Oil warning light油壓警告燈 | YES是 | ||
| Oil alert機油報警器 | YES是 | ||
| OPTIONAL FEATURES選用配置 | DC circuit breaker直流保護器 | OPTIONAL選用 | |
| Calculagraph計時器 | OPTIONAL選用 | ||
| Big wheel大輪子 | OPTIONAL選用 | ||
| Three phase voltage三相電壓 | OPTIONAL選用 | ||
| Current meter電流表 | OPTIONAL選用 | ||
| ATS | OPTIONAL選用 | ||
| Remote control遙控功能 | OPTIONAL選用 | ||
